Chili sauce filling machine ( MIC-ZF12 12 nozzles Piston Hot Filling Machine )
Chili sauce filling machine ( MIC-ZF12 12 nozzles Piston Hot Filling Machine )
Chili sauce filling machine ( MIC-ZF12 12 nozzles Piston Hot Filling Machine )
Chili sauce filling machine ( MIC-ZF12 12 nozzles Piston Hot Filling Machine )
Chili sauce filling machine ( MIC-ZF12 12 nozzles Piston Hot Filling Machine )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This filling capping machine is suitable for:

It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.


Features & Benefits:

1.      Available with standard conveyor or with pucks for unstable bottles

2.      Flexible design

3.      Very fast and easy changeover of format size

4.      Docking filling station model available

5.      Diving nozzle with bottom-up filling

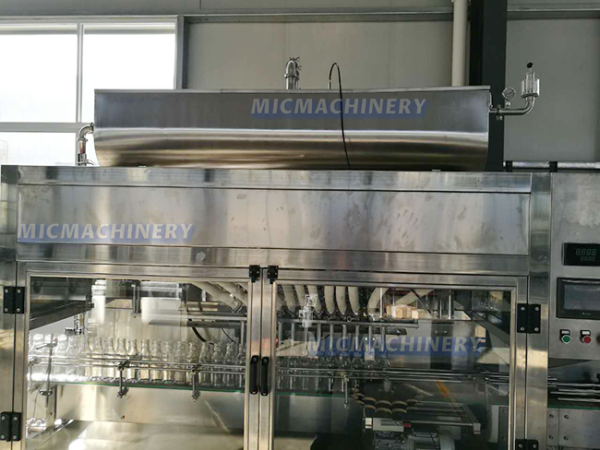

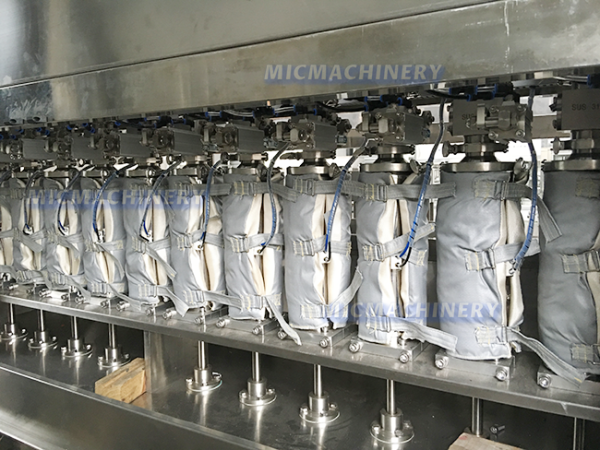

This MIC-ZF12 Automatic Bottle Filling Machine adopts serve ball-screw system to drive the piston cylinder.

The machine adopts PLC control, according to the filling bottle, fixed discharging mouth, the rest all operation can be finished on a touch screen. In addition to have common automatic servo piston filling machine advantages, also the widened the range of filling material. Such as filling material contains particles, long strips of solid content, also can be a very effective filling.


This US export jalapeno sauce filling capping packing machine line was installed and trained by 3 engineers oversea help. Our engineers have gone to client's factory, intalled machines, trained their works at April, 2018. The client's are very satisfied with our packing line for their beautiful products.


About the machine use problem, after the sales,

we will take video for:

1.    how to connect the power

2.    how to operate the machine

3.    how to maintain the machine and how often to do it

4.    how to adjust machine to different bottle or material.


Thank you for the reading this article,

you can also check for:


→ Our machine application ←

→ Our machine lately export news ←

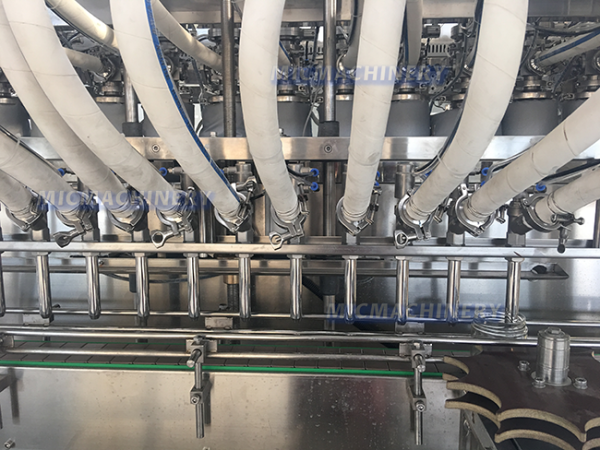

Filling Nozzle

12 Nozzles

Filling Volume

200ml-1000ml

Filling Form

Piston Type

Speed

3000BPH(Base on 350ml)

Accuracy

±99%

Material

Rack SUS304 (Material Contact Parts: SUS316)

Air Pressure

0.6-0.8 Mpa

Power

2.8kw/480 V 60Hz 3P

Conveyor Width

152mm

POM Chain Height

900+/-25mm


Parts Brand

Touch Screen

TouchWin

PLC

Schneider

Solenoid Valve

AirTac

Bottle Inspection Photoelectric

Aopu Shi Japan

Approach Switch

Netherlands

Differential Switch

Netherlands

Air Handling

AirTac

Button and other low-voltage electrical

Schneider

Alarm

Real time fault alarm, important

failure can stop automatically

Servo Motor

Taiwan TECO

Double Ball Screw Rod

Mic

Function

Filling Count

Material

Contact parts with 316 stainless steel,

other main parts made of 304 stainless steel

Seal Ring

Carbon PTFE fiber material, corrosion,

wear resistance, good sealing
